Sample Roof Framing

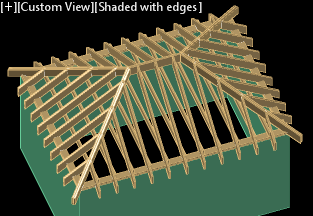

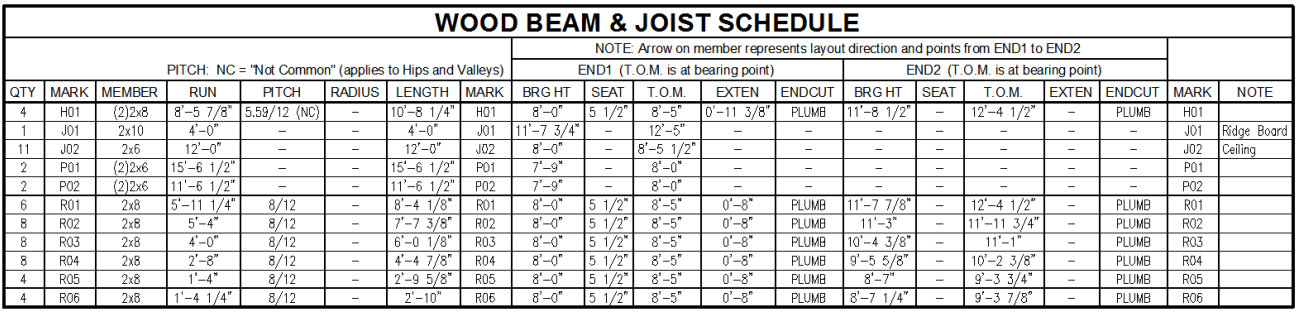

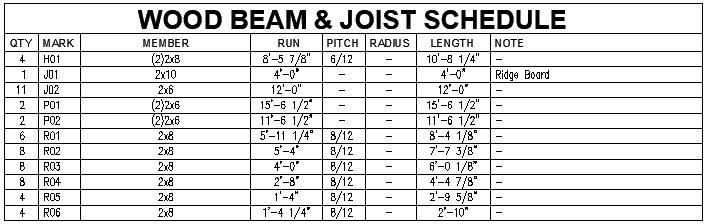

This is the simple hip roof used to generate the sample schedule shown in the WoodBeams Help.

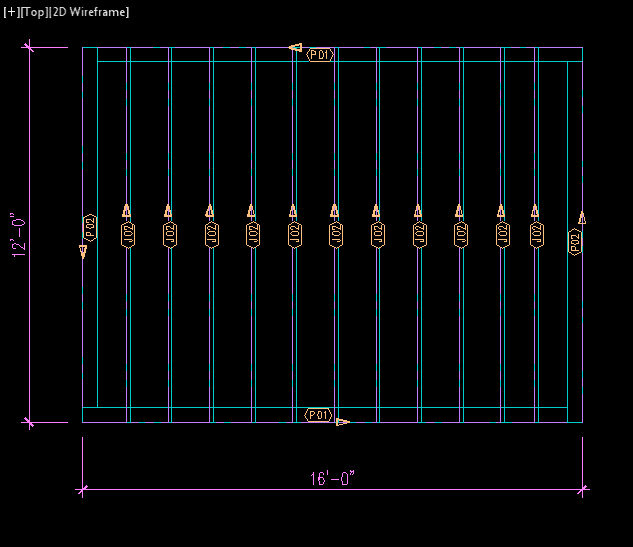

Two viewports, each displaying desired layers by freezing other layers in the viewport.
Woodbeam Layer Key Overrides were used when placing the members to facilitate this.

Member display was changed from centerline (the ACA default) to outlines,
by modifying the Display Properties, per instructions in Woodbeam Help.
